The industrial landscape is shifting beneath our feet. In 2026, we have observed that worsening environmental conditions—accelerating humidity, rising salinity in coastal zones, and aggressive industrial pollutants—are pushing traditional building materials to their breaking point. For many facility managers, the cycle of replacing rusted roofing every two or three years has become an unsustainable financial burden. As experts in the heavy-duty building materials sector, we recognize that the market no longer just asks for a roof; it demands a long-term defense system that can withstand the test of time and chemistry.
We operate 22 advanced production lines to ensure that every project, regardless of scale, receives stable production and on-time delivery. Even for large orders requiring multiple containers, we can guarantee timely shipment due to our robust manufacturing infrastructure. Our commitment is to provide high-volume solutions without compromising on the meticulous quality control that industrial projects require. If you are looking for a manufacturer capable of handling large-scale demands while maintaining a focus on technical innovation, Jieli stands ready as your strategic partner in infrastructure longevity.
In 2026, picking the correct stuff begins by spotting the main reason for early breakdown in usual metal tops. Most common color-painted, dust-covered, or melted plastic steel plates depend on spray methods. While these covers seem even to plain sight, a close look under a scope tells a different tale that hits your money side.
The spray way, no matter the stuff or depth applied, fails to promise a full close. There always exist built-in chain breaks and tiny openings in the chemical makeup of the paint. These small holes serve as doors for eating media. Once damp, salt bits, or sour gases slip through these spots, they hit the steel base, starting spot eating and gap eating from inside outward. In shore settings, salt bits break the metal safe layer, while in factory areas, sulfur mixes and nitrogen oxides join with water to make sour rain. This explains why a usual painted top may seem okay for twelve months, but soon displays wide rust and build-up, thinning right after. In strong-eating spots, these small holes leave common steel plates almost without guard.
We understood that to fix the eating problem for factory spots truly, the field had to shift from fluid covers to solid-form safety. This brought the creation of our TSP Steel Sheet Trapezoidal 1050, an item built from the ground up to remove the “micro-hole” weak point. It matters to stress that TSP forms basically a metal tile. While fake choices are out there, the main task of the TSP method is to give the power of steel without the risk of rust.

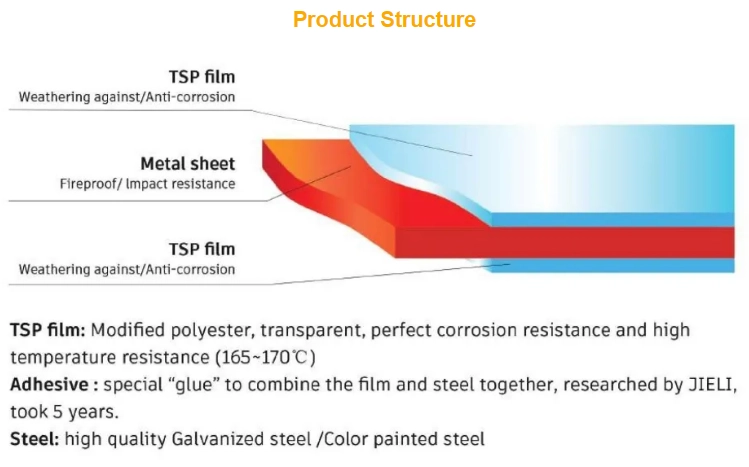

The core of this innovation is a sophisticated Triple-Layer Structure specifically designed for demanding environments:
Top Layer (TSP Film): This layer provides the primary shield for Weathering against/Anti-corrosion. The modified polyester film is non-porous and airtight, preventing salt spray, moisture, and UV radiation from reaching the core.
Middle Layer (Metal Sheet Core): The high-quality galvanized or color-painted steel substrate ensures the tile is Fireproof/Impact resistance. It provides the structural integrity needed to withstand mechanical stress, heavy snow loads, and hail.
Bottom Layer (TSP Film): Like the top layer, this secondary film provides Weathering against/Anti-corrosion protection from the underside. This is critical in facilities like chemical plants or animal husbandry buildings, where internal corrosive vapors are just as dangerous as the outside weather.
By sealing the metal behind this ongoing, air-emptied stuck wall on both sides, we block any eating parts from ever touching the steel heart. The lasting power of this stick comes from a special glue, a unique “glue” that took our group five years of focused study to make right. After ten years of tech tuning since our 2016 study kickoff, this method now sets the trade norm for lasting strength.
When we evaluate materials for high-corrosion environments, we look at empirical data from our CMA-certified labs. The performance gap between film-coated technology and traditional painted steel is most evident during standardized chemical and environmental stress testing.
1000-Hour Salt Spray Test: In a set place with a 50°C salt strength much higher than normal shore states, our film-covered plate had no rust after 1000 hours. By contrast, standard color steel had total face breakdown.
Extreme Chemical Resistance: The changed polyester film faced hard mixes for 168-hour rounds. It showed no color loss, swell, or split when open to 15% Hydrochloric Acid (HCl), 20% Sulfuric Acid (H2SO4), and 20% Nitric Acid (HNO3). This sets it as the top pick for hiding work, paper plants, and water clean sites.
Temperature Tolerance: While some stuff fights heat spread, the TSP stuff stays steady and working in hot places from 165°C to 170°C. It handles the heat push from wild temp changes.
Bending and Adhesion: In 90-degree bend checks, the film holds its stick without breaks or peels. This makes sure the safe seal stays whole even at joins and stacks where rust often begins.
For large-scale facilities in 2026, structural reliability is non-negotiable. The TSP series is designed to offer a balance between wide coverage and rigid strength. With a cover width of 1050mm and thickness options ranging from 0.4mm to 0.8mm, it allows for faster installation while maintaining the load-bearing capacity expected of high-quality metal roofing.
Unlike purely synthetic alternatives, this metal-based solution supports longer truss distances (purlin distance 1.2m-1.5m), making it the ideal choice for massive factories and warehouses. It is important to remember that while the steel provides the “bones,” the film provides the “protection.” Its core advantage is not heat insulation, but the fact that it simply does not rust, even when exposed to harsh industrial pollutants.
Professional results depend not just on the material, but on how it is handled by professionals. The installation process for TSP film-coated steel is designed to be streamlined and familiar to anyone who has worked with standard metal roofing. Contractors find that these materials are relatively lightweight compared to heavy-duty cast alternatives, which significantly lowers labor costs and speeds up the construction timeline.
During the process, Contractors should always walk along the purlins to ensure safety and protect the sheet’s surface during the build. We focus our expertise on the manufacturing and testing phases; therefore, while we do not provide on-site installation guidance, our technical team is always available to provide detailed manuals and project drawing assistance.
Every product we manufacture is backed by a 15-year warranty. This reflects our confidence in the 22 production lines and the rigorous testing conducted in our government-authorized labs. We don’t just sell roofing; we provide a decade of guaranteed protection for your investment, ensuring your roof survives 3 to 5 times longer than traditional color steel in high-corrosion zones.
If your site needs the top strength for long steel beam gaps and must hold in a place where usual metal tops eat out in two years, the TSP metal tile forms the smart step up. Its heart plus is that it stays rust-free. We hold to fixing issues through new ways, swapping shaky sprayed covers with the air-seal film method that works as a lasting block.
Our aim remains “Better Corrosion Resistance” that keeps your work going without the steady fear of fix and mend. As you wrap up our 2026 job details, our group stands ready to aid you in picking the right depth, color, and shape that your build needs. Let’s set a base that holds.
Get a 2026 Project Quote: Secure professional pricing for your large-scale infrastructure needs today.
Q: Why is TSP film-coated steel described as the “new choice” for corrosion resistance?
A: Unlike traditional color steel, which uses spray technology, TSP uses an airtight film bonding process. Spraying always leaves micro-holes that let in acids and salts, leading to rust. TSP’s modified polyester film completely seals the steel substrate with no micro-holes, making it virtually immune to the rust and pitting that usually destroy industrial roofs in a few years.
Q: How does TSP perform against fire and mechanical impact?
A: Because TSP is a metal tile with a high-quality galvanized steel core, it maintains an A-grade fireproof rating and exceptional impact resistance. It provides the structural security of steel but with the added benefit of being non-rusting in chemical and coastal environments.
Q: What kind of warranty and service can we expect for these 2026 roofing solutions?
A: Our TSP film-coated steel comes with a 15-year warranty. We produce these materials on 22 dedicated production lines and test them against 15% Hydrochloric Acid and salt spray for 1000 hours. While we do not offer on-site installation, we provide full technical support, project calculations, and free samples to help you and your Contractors succeed.
