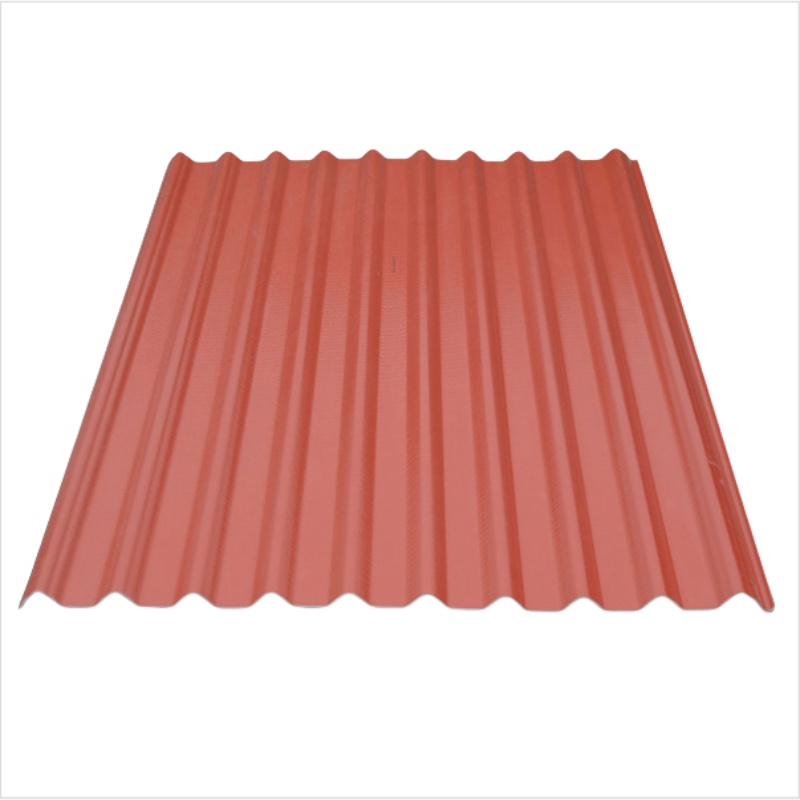

Glass Fiber Reinforced UPVC Roof Sheet T1088

Fiberglass Reinforced Roof Sheet is a patented product of JIELI ROOF. It features a multi-layer structure:
Upper Layer: High-performance ASA material for superior weather resistance and UV protection.
Second & Fourth Layers: Durable UPVC roofing material for strength and longevity.
Core Layer: Reinforced with fiberglass mesh, providing exceptional tensile strength and impact resistance.

consult

contact

SPECIFICATION

•Width:1088mm

•Efficient width:1008mm

•Thickness:2.0mm,2.5mm,3.0mm

•Unit Length: 219mm

•Length: Customized (times of unit length 219mm)

•Color: red, blue, gray, green…customized

•Purlin distance:≤1200mm

•Application: roof, ceiling, wall panel etc

FEATURE

•Heat insulation: thermal conductivity 0.325 w/m.k, about 1/2000 of color steel sheet

•Sound insulation: reducing 25~30 Db

•Rust free

•Chemical corrosion resistance

•Fire rating B1, self-extinguishing

•Good impact resistance

•Light weight, 5.5~6kgs/m2

•Easy installation

•Environment friendly

APPLICATION

PRODUCT DETAILS

ORDER PRODUCT

INSTALLATION GUIDE

PARAMETER

Model number	Glass Fiber Reinforced UPVC Roof Sheet T1088
Material	ASA UPVC/UPVC
Quality assurance	8-15 years
Service life	25-30 Years
Brand Name	JIELI ROOF
Width	1088mm
Length	Customized,max 5.8m in 20ft container, 11.8m in 40ft container
Weight	5.5kg/㎡, 6.5kg/㎡
Thickness	2.0mm/2.5mm/3.0mm
Colour	Blue, Red, Grey, Green, Golden or customized
Advantage	Anti-corrosion, heat insulation, light weight, fire prevention, color stability, anti-ultraviolet, anti-impact, good sound insulation, environmental protection, waterproof
Place of Origin	China
