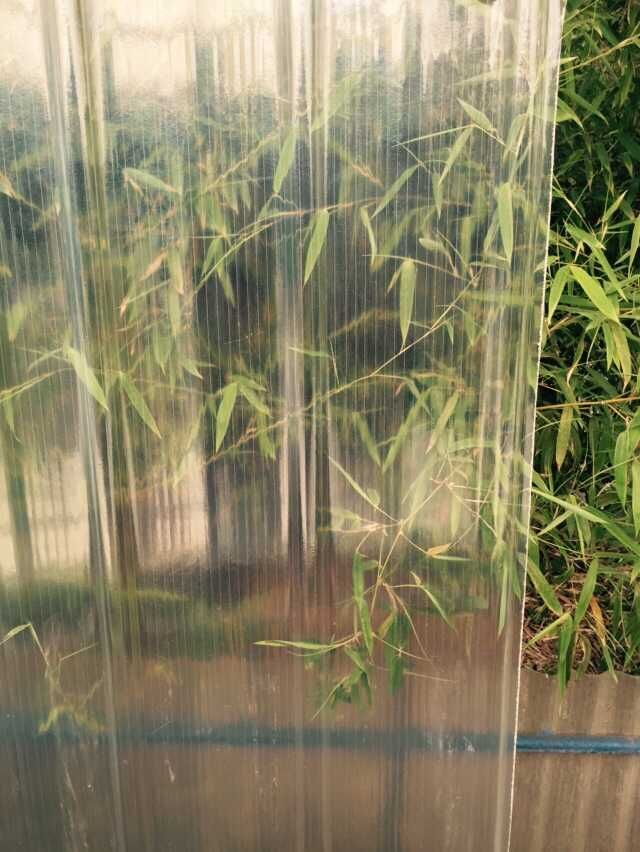

Glass Fiber FRP Roof Sheet

FRP (Fiberglass Reinforced Plastic Panels) produce moisture-proof and impact-resistant sanitary environments in an array of decorative choices.

consult

contact

Specification

• Width: 720mm/910mm/940mm/1088mm/1130mm
• Length: Customized
• Thickness: 0.8mm/1.0mm/1.2mm/1.5mm/2.0mm
• Cover Width: 960mm
• Purlin Distance: 660mm
• Unit Length: 219mm
• Lengthwise Overlap: 219mm

Application

The color of FRP sheet is transparent or translucent. It is widely used for natural lighting on workshop, greenhouse,skylight,commercial building and civil buidling.

Product Details

Order Product

Installation Guide

parameter

ITEM	DATA
Tensile strength(Mpa)	155
Tensile modulus(Gpa)	7.75
Bending Strength (Mpa)	223
Bending modulus (Gpa)	8.3
Wet flexural strength (Mpa)	217
Wet flexural modulus (Gpa)	8.43
Determination of the punch-type shear(Mpa)	125
Coefficient of thermal expansion	2.5×10
Barcol hardness	52
water absorption (%)	0.126
distortion temperature (?)	200
coefficient of heat conductivity w/w.k	0.156
specific gravity(g/m2)	1.4
Application temperature range (?)	FROM -40 TO130
flash(ing) point (?)	410
UV proof (%)	99.99
