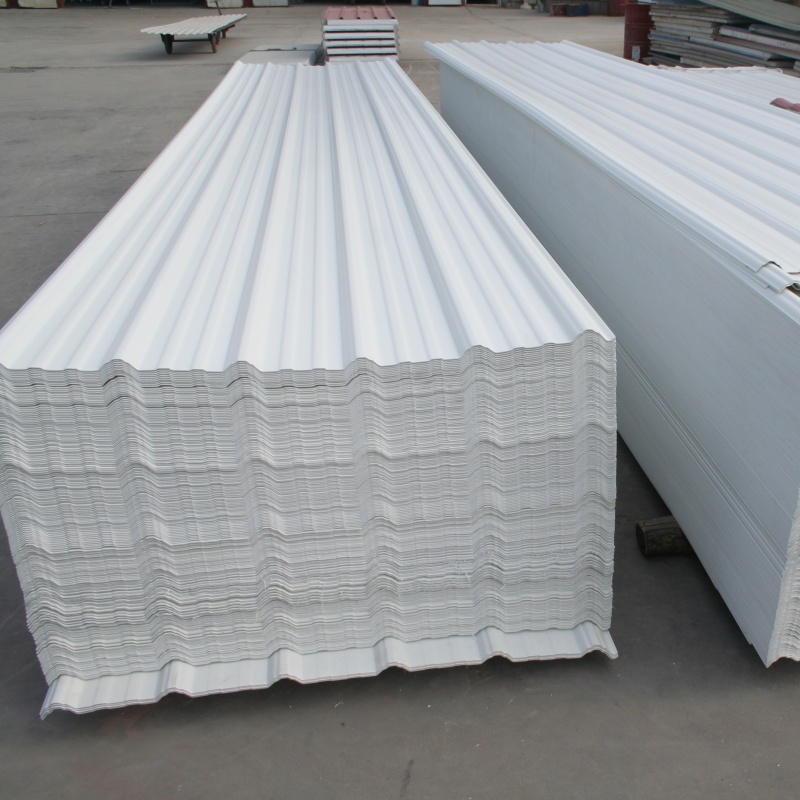

UPVC Roofing Sheet T1130

AS the Popular UPVC profile T1130 one-piece shingle design, Four/three layers co-extrusion technology. Customized color, length and thickness to supply various solution.
Widely used in Roofing, Wall Cladding and Ceiling.

consult

contact

Specification

•Width: 1130mm

•Efficient width:1050mm

•Length: Customized,max 5.8m in 20ft container,11.8m in 40ft container

•Thickness: 2.0mm, 2.5mm, 3.0mm

•Color: Customized

•Purlin distance:≤ 1200mm

•Application: factory industrial roof,ceiling,wall panel etc

Product advantage

• Corrosion resistance.

• Color stable.

• Sound absorption and heat insulation.

• Good water resistance.

• Fireproof resistance.

• Easy to install.

• Good impact and low temperature resistance.

• Light weight.

• Stable volume.

• No rust

Thickness Guide
Thickness	Recommended Application Scenarios
2.0–2.5mm	Civil buildings, small warehouses
2.5–3.0mm	General factories, logistics warehouses, production workshops
3.0–3.5mm	Coastal areas, high humidity, high temperature environments
3.5–4.0mm	Farms, chemical plants, highly corrosive environments
4.0mm and above	Large-scale projects, high load-bearing capacity, heavily corrosive environments (glass fiber reinforced)

Application

JIELI Brand Industrial UPVC Roofing Sheet T1130 is widely used for Walling Cladding, Ceiling, Roofing on acid picking workshop, warehouse, farm industry, factory etc.

Product installation

UPVC Roof Sheet Installation Guide : 1. Preparation Ensure the roof frame is level and strong. Prepare tools: drill, screws with washers, tape measure, gloves, saw. Store sheets on a flat, clean surface before installation. 2. Installation Direction Install from bottom to top and against the main wind direction. Side overlap: 1 corrugation. End overlap: 150–200 mm. 3. Fixing the Sheets Use self-drilling screws with rubber washers. Fix screws on the top of the wave/crest. Screw spacing: Vertical: 500–800 mm Horizontal: every 1–2 waves 4. Cutting the Sheets Cut with a hand saw or circular saw. Cut slowly to avoid cracking. Always wear safety protection. 5. Ridge Cap Installation Install ridge caps after all sheets are in place. Overlap 100–150 mm and fix with screws. 6. Safety Tips Do not step directly on the sheets; step on purlins if necessary. Avoid installation during strong wind or rain.

parameter

Product Name	UPVC Roof Sheet T1130
Material	Polyvinyl Chloride
After-sales service	A Grade
Service life	25-30 Years
Brand Name	JIELI ROOF
Width	1130mm
Length	Customized
Weight	5.5kg/㎡~6.5kg/㎡
Thickness	2.0mm/2.5mm/3.0mm
Colour	Blue, Red, Grey, Green, Golden or customized
Advantage	Anti-corrosion, heat insulation, light weight, fire prevention, color stability, anti-ultraviolet, anti-impact, good sound insulation, environmental protection, waterproof
Place of Origin	China
